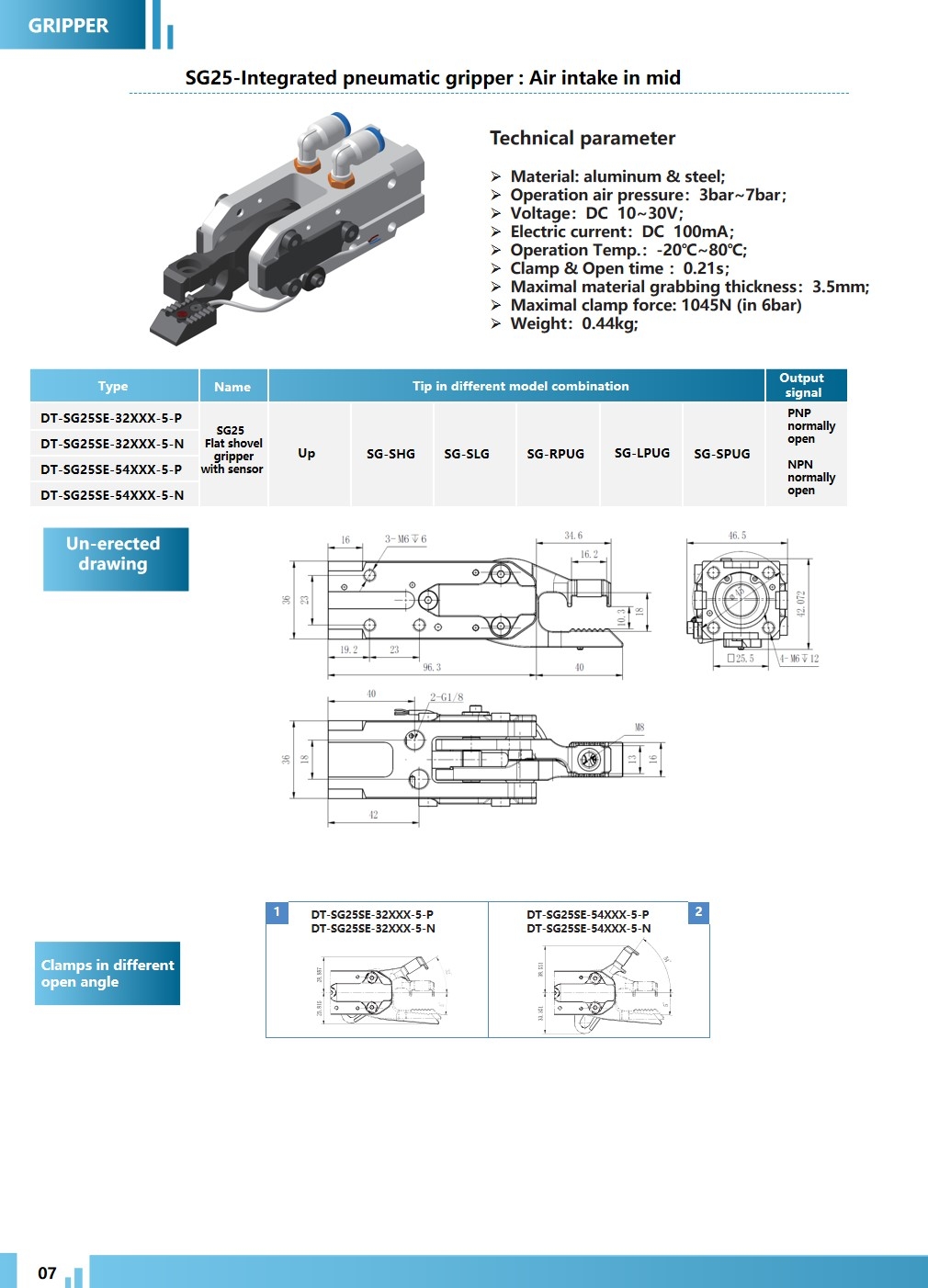

Product Features
- Materials Used: Aluminum & Steel
- Working Pressure: 3 bar ~ 7 bar
- Operating Voltage: DC 10~30 V
- Operating Current: DC 100 mA
- Clamping/Opening Time: 0.21 s
- Maximum Material Thickness for Clamping: 3.5 mm
- Maximum Clamping Force (at 6 bar Air Pressure): 1045 N
- Product Weight: 0.44 kg
