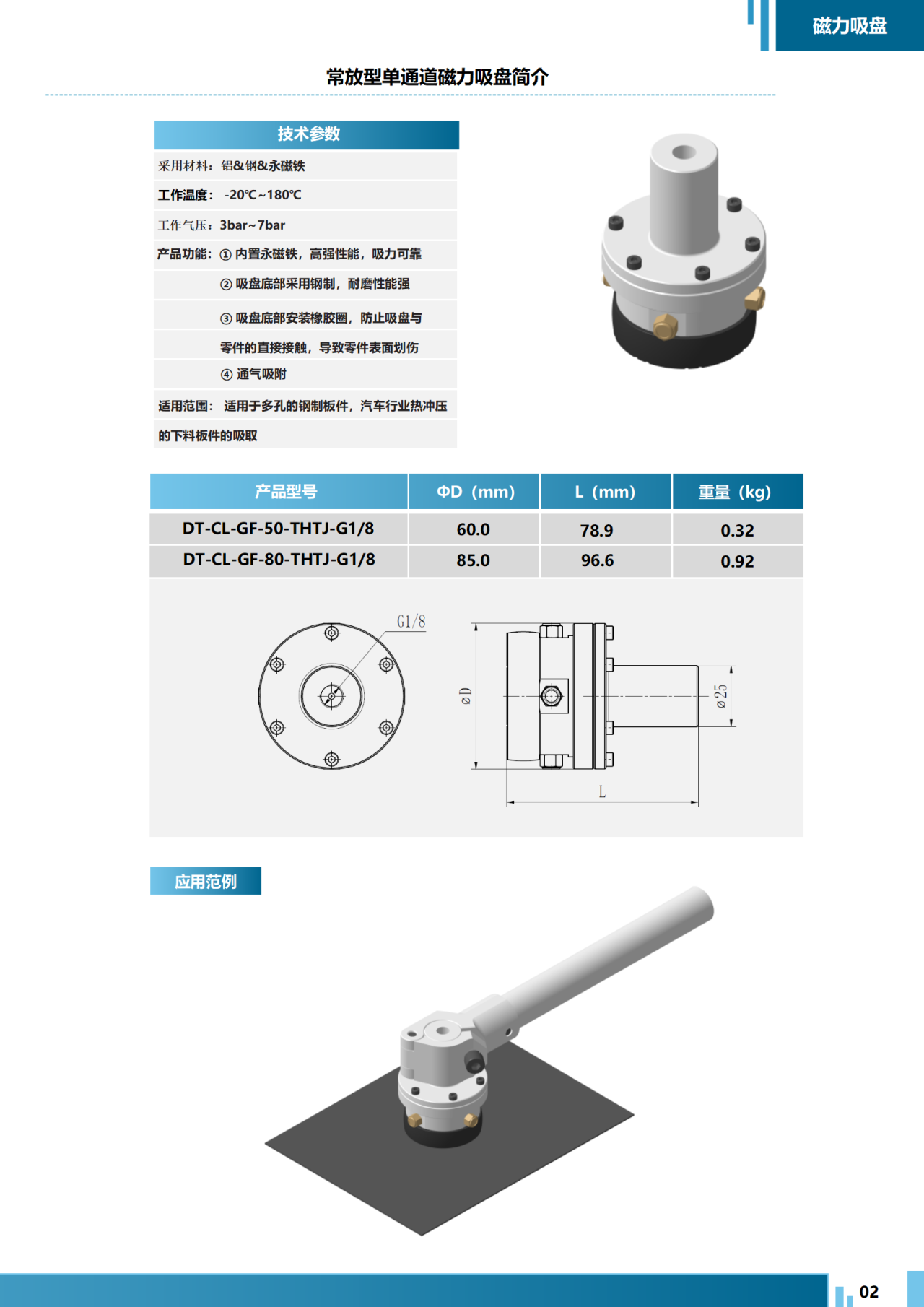

Product Features
- Materials Used: Aluminum, Steel & Permanent Magnets
- Operating Temperature: -20℃ ~ 180℃
- Working Pressure: 3 bar ~ 7 bar
- Product Functions: ① Built-in permanent magnet with high performance and reliable suction force; ② The suction cup base is made of steel, featuring strong wear resistance; ③ A rubber ring is installed at the suction cup base to prevent direct contact between the suction cup and parts, which could cause scratches on the part surface; ④ Ventilation for adsorption
- Application Scope: Suitable for absorbing porous steel plates and blanking plates used in hot stamping in the automotive industry
